China SAE 100 R2 Steel Wire Reinforced Hydraulic Hose Supplier, Company

1 / 3

China SAE 100 R2 Steel Wire Reinforced Hydraulic Hose Supplier, Company

Send Inquiry

Product Description

Hydraulic hose SAE 100 R2 is designed to deliver hydraulic oil, liquid, as well as gas. It is capable of transferring petrol-based liquids such as mineral oil, hydraulic oil, fuel oil, and lubricant, while also being suitable for water-based liquids. It is widely applied across hydraulic systems in oil, transport, metallurgy, mining, and forestry sectors.

Ideal Applications

Road Machinery: Road rollers, trailers, blenders, and pavers.

Construction Machinery: Tower cranes and lift machines.

Traffic & Transport: Cars, trucks, tankers, trains, and airplanes.

Eco-friendly Machines: Spray cars, street sprinklers, and street sweepers.

Sea & Ship Work: Offshore drilling platforms, boats, barges, oil tankers, and container vessels.

Farm & Mineral: Tractors, harvesters, loaders, excavators, and stone breakers.

Technical Superiority & Structure

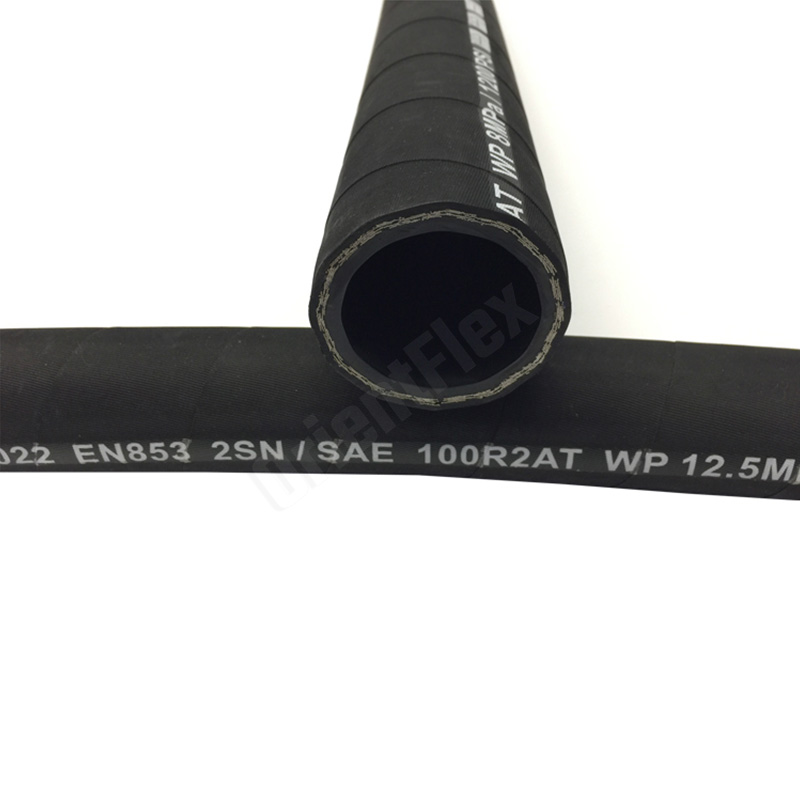

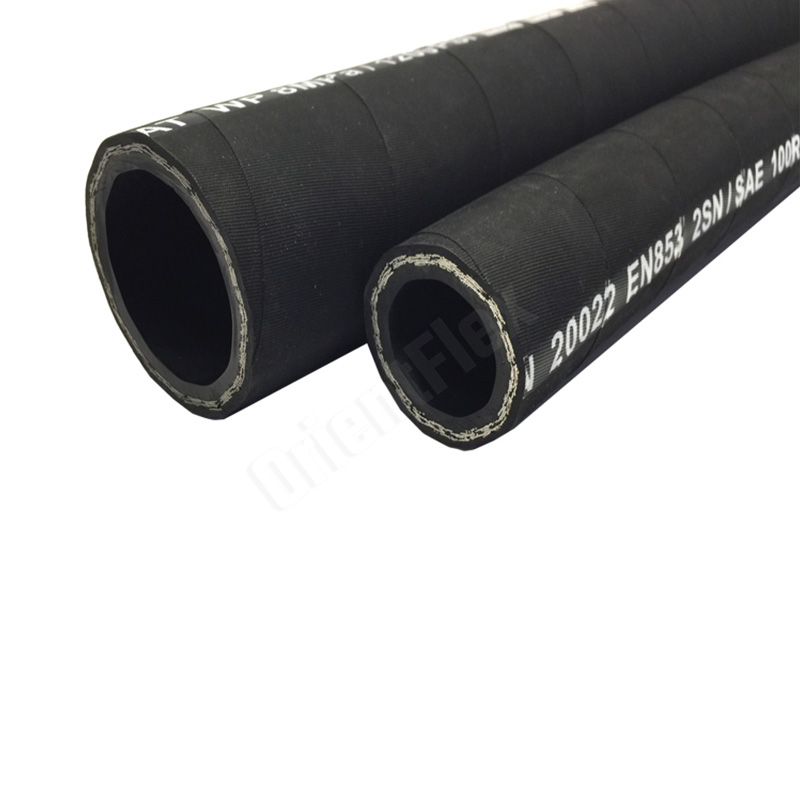

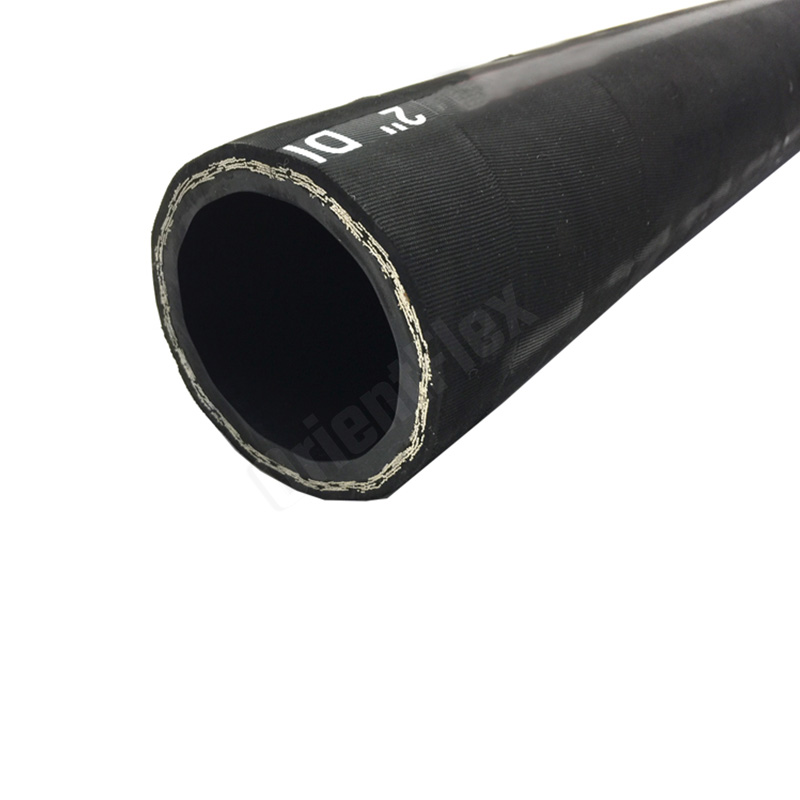

SAE 100 R2 (also known as EN 853 2SN) is similar to R1 but features 2 layers of steel wire reinforcement. This construction allows it to bear significantly higher pressure, with a maximum working pressure reaching up to 35 Mpa.

The hose features an NBR inner tube which offers excellent oil and chemical resistance, making it suitable for transferring various hydraulic oils and corrosive liquids. Additionally, it provides excellent abrasion resistance and is flame retardant.

Expert Hydraulic Solutions

With expertise in hydraulic solutions established since 2006, we provide high-quality hose assemblies using advanced equipment. By importing precision crimping machinery from Germany, we control crimp accuracy within 0.2mm, significantly outperforming standard machines that typically only reach 2mm accuracy.

Customization Services

Beyond standard hoses, we offer fully customized services tailored to specific requirements. Factors including length, color, packaging, and printing can be customized. Production can also be executed based on technical drawings.

Frequently Asked Questions

1. What is the difference between SAE 100 R1 and R2 hoses?

The main difference is the reinforcement. SAE 100 R2 has 2 layers of steel wire reinforcement, whereas R1 typically has one. This allows the R2 hose to handle much higher working pressures.

2. What is the maximum pressure for SAE 100 R2?

The maximum working pressure for SAE 100 R2 hydraulic hoses can reach up to 35 Mpa, depending on the specific diameter and construction.

3. Is this hose resistant to chemicals and oil?

Yes, the NBR inner tube provides excellent resistance to mineral oils, hydraulic oils, fuel oils, lubricants, and various corrosive liquids.

4. Can I use SAE 100 R2 for water-based liquids?

Yes, this hose is suitable for both petroleum-based liquids and water-based liquids.

5. What custom options are available?

We offer customization for hose length, color, packaging, and printing. We can also manufacture hoses based on your specific technical drawings.

6. How accurate is the hose assembly crimping?

Using precision German machinery, the crimp accuracy is controlled within 0.2mm, ensuring a much tighter and safer fit compared to standard 2mm accuracy machines.
