Hydraulic hose SAE 100 R3 is designed to deliver hydraulic oil, liquid, as well as gas. It effectively transfers petrol-based liquids such as mineral oil, hydraulic oil, fuel oil, and lubricants, while also being highly suitable for water-based liquids. This hose is applicable for all hydraulic systems in oil, transport, metallurgy, mining, and forestry sectors. It is the ideal solution for all middle-pressure applications.
Key Application Areas
Road Machinery: Road rollers, trailers, blenders, and pavers.
Construction: Tower cranes, lift machines, loaders, and excavators.
Traffic & Transport: Cars, trucks, tankers, trains, and airplanes.
Agriculture: Tractors, harvesters, seeders, threshers, and fellers.
Technical Construction & Material

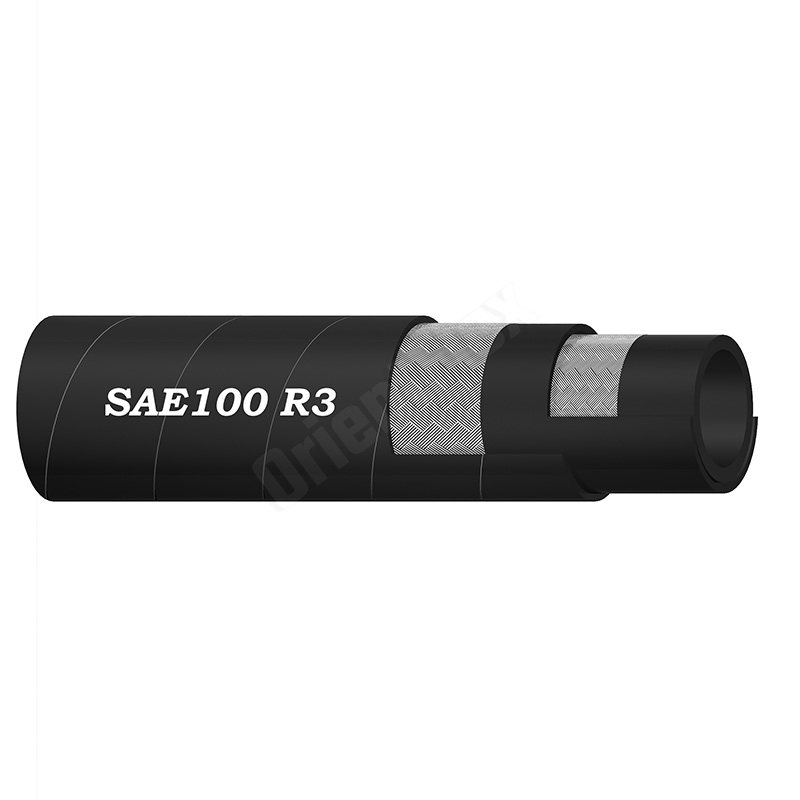

The SAE 100 R3 hydraulic hose is engineered with a specialized three-part structure to ensure durability and performance:
Inner Tube: Made of high-quality NBR (Nitrile) for superior oil resistance.
Reinforcement: Two layers of high-strength fiber braid for structural integrity.
Outer Cover: Weather-resistant synthetic rubber for complex environmental conditions.
Pressure: Maximum working pressure reaches 10.5 Mpa.
NBR is selected as the raw material for the inner tube because it offers the best oil resistance among all rubbers, allowing the hose to withstand hydraulic oils for the long term. The dual-layer fiber reinforcement provides the strength needed to handle higher pressures while maintaining flexibility. Furthermore, the synthetic rubber cover ensures the hose can be used outdoors and in demanding weather conditions.
Frequently Asked Questions (FAQ)
1. What is the primary use of the SAE 100 R3 hydraulic hose?
It is primarily used to deliver hydraulic oils, liquids, and gases in middle-pressure applications across industries like construction, agriculture, transport, and mining.
2. Can this hose handle petroleum-based fluids?
Yes, the SAE 100 R3 is ideal for transferring mineral oil, fuel oil, lubricants, and other petrol-based liquids due to its NBR inner tube.
3. What is the maximum working pressure of the SAE 100 R3 hose?
The maximum working pressure for this specific hydraulic hose reaches 10.5 Mpa.
4. Is the hose suitable for outdoor use?
Yes, the cover is made from weather-resistant synthetic rubber, making it capable of enduring complex weather and outdoor environments.
5. How does the reinforcement layer benefit the hose?
It features two layers of high-strength fiber braid which strengthens the structure and allows the hose to bear higher pressure.
6. Does this hose come with compatible fittings?
Yes, relevant fittings are available to provide a complete solution, helping to save time and reduce costs during installation.
