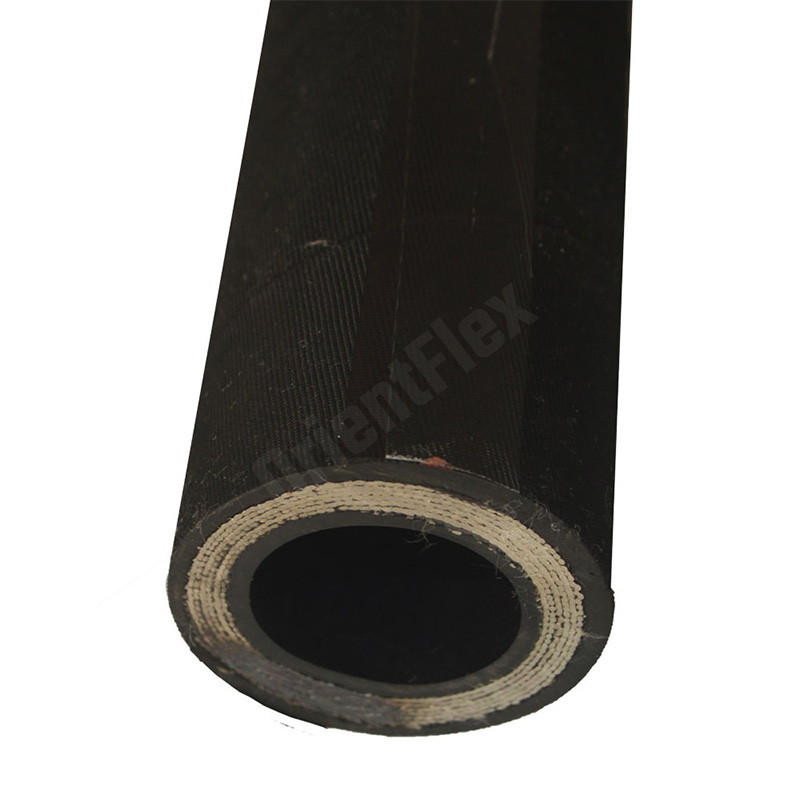

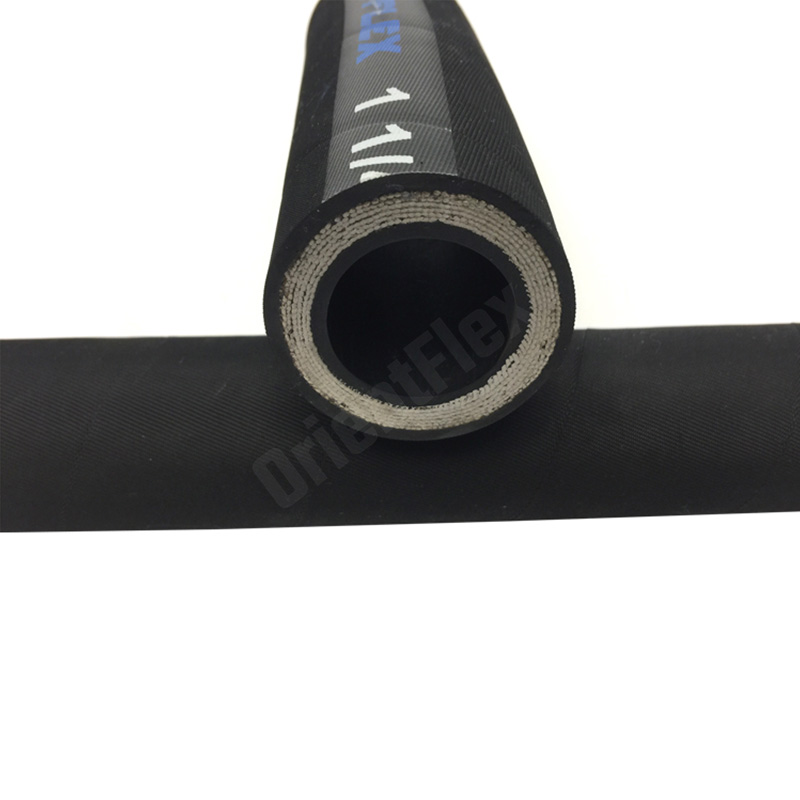

Hydraulic hose SAE 100 R13 is designed to deliver hydraulic oil, liquid, as well as gas. It efficiently transfers petrol-based liquids such as mineral oil, hydraulic oil, fuel oil, and lubricants, while also being perfectly suitable for water-based liquids.
It is ideal for all hydraulic systems in oil, transport, metallurgy, mine, and forestry industries. Specific ideal uses include:
SAE 100 R13 is specially designed for extremely high-pressure use and can operate under the toughest and harshest conditions.
Features 4 or 6 layers of steel wire braid. Generally, sizes smaller than 1'' have 4 layers, while sizes larger than 1'' incorporate 6 layers of steel wire.
The inner tube and cover utilize NBR (Nitrile Butadiene Rubber), which offers the best oil resistance among all rubbers.
To ensure superior quality, we import NBR from Korea, recognized as the best material available. It possesses super toughness and a "shape memory" quality—when subjected to external pressure, it recovers to its previous shape quickly.
The inner tube is engineered to bear high temperatures and features anti-aging properties, ensuring a long service life in hydraulic oil delivery. The outer cover provides excellent protection, resisting ozone, weathering, and cutting.
